| 材質 | PTFE |
|---|---|
| 適用范圍 | 風機,水族類,油箱,咖啡機,過濾壺,醫用,空氣凈化器,挖掘機,過濾器,汽車發動系統,凈水器,水泵,離心機,水槽,壓縮機,烤漆房,吸塵器,制糖,洗衣機,貼片機,直飲機,水龍頭,油煙機,空調 |
| 用途 | 防塵、除塵 |
| 類型 | 高效 |
| 適用對象 | 粉塵 |
| 編織方式 | 針刺 |
| 性能 | 防靜電,防火,防水,防油,耐酸,耐低溫,耐高溫,耐堿 |
| 品牌 | AOBO |
| 型號 | AOBO-1 |
產品信息名稱： PTFE除塵濾袋品牌： AOBO 貨號： AOBO-6 產品特點優點：垃圾焚燒發電所產生的煙氣，具有高強腐蝕性、高濕性、溫度高等特性。采用100%PTFE纖維濾料，可以耐所有腐蝕性。經覆膜的PTFE濾料可保證垃圾發電除塵效果10mg以下。

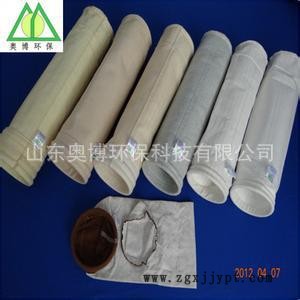

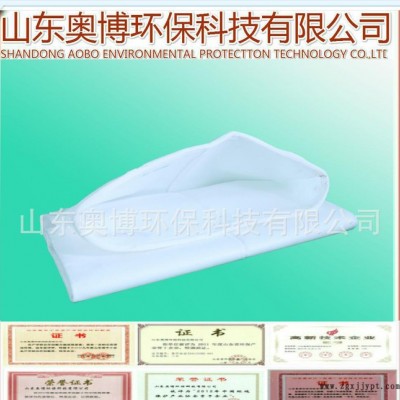

AOBO-PTFE除塵濾袋
AOBO-PTFE系列濾料是采用具有耐所有化學腐蝕、以“纖維王”著稱的100% PTFE纖維及基布經特殊工藝織布而成的針刺氈濾料及其覆膜濾料。主要應用于危險廢棄物焚燒、生活垃圾焚燒產生的高溫、高腐蝕的煙氣處理。該濾料具有耐所有化學腐蝕（強酸、強堿等條件下均不受影響）、可在260℃高溫下長期連續運行、排放濃度低（覆膜濾料可低于10mg/m3）等特點。是目前垃圾發電企業、危險廢棄物焚燒企業煙氣處理的理想濾料。并成功應用于以上企業得到客戶好評。
執行標準：
1、環境保護產品技術要求—袋式除塵器濾袋 HJ/T327-2006
2、袋式除塵器技術要求 GB/T6719-2009
3、生活垃圾焚燒大氣污染物排放標準 DB11502-2008
應用場合：
1、垃圾發電鍋爐除塵系統
2、危廢焚燒除塵
3、高腐蝕、高溫性工況除塵
性能參數：
序 號 | 名 稱 | 單 位 | 參 數 | 備 注 |
1 | 纖維層 |
| 100%PTFE | 梯度結構生產 |
2 | 基 布 |
| 100%PTFE | 長絲基布 |
3 | 克 重 | g/m2 | 800±25 |
|
4 | 厚 度 | Mm | 1.5 |
|
5 | 透氣量 | M3/m2.min | ≥4 |
|
6 | 縱向斷裂強度 | N/5*20cm | ≥600 |
|
7 | 橫向斷裂強度 | N/5*20cm | ≥650 |
|
8 | 長期使用溫度 | ℃ | 露點溫度以上 260℃以下 |
|
9 | 短時使用溫度 | ℃ | 280 | 280每次不超過10min |
10 | 后處理 |
| 燒毛、軋光、高溫定型、PTFE乳液浸漬防腐處理 表面防油防水處理
| |
實驗室
奧博是高端復合型人才孵化基地。現有工程技術人員40人，其中高級技術人員16人，中級技術人員8人， 每年委派不少于10人到高校進行培訓，并聘請相關專家、教授進行指導，大力提升技術人員的研發能力。通過人才定向培養與交流，打造出一支精干、專業的科研隊伍，為公司長期發注入了新的活力。
奧博立足科技創新，致力工業除塵，先后投資3000多萬元，建成了2000多平方米的科研中心，成立了山東省袋式除塵唯一工程技術研究中心。公司先后引進數字式透氣儀、電子織物強力機、全能型可見光譜分析儀、風動洞過濾效率測試線等研發試驗設備30余臺（套），總價值1000余萬元，在國內同行業處于領先水平。
's high-end talents for incubators. Existing engineering and technical personnel 40 people, including senior technical personnel 16 people, intermediate technical personnel 8 people, appointed each year not less than 10 people to the training of colleges and universities, and invite relevant experts, professors, guide, vigorously promote technical personnel's research and development ability. Through the orientation training and communication, to create a compact, professional r&d team, long hair has injected new vitality to the company.
Ordered based on scientific and technological innovation, is committed to industrial dust removal, has invested more than 3000 ten thousand yuan, has built more than 2000 square meters of scientific research center, set up in shandong province, the only engineering technology research center of bag-type dust collector. Company has introduced digital air meter, electronic fabrics strength machine, universal visible spectrum analyzer, pneumatic hole filter efficiency testing line, such as research and development testing equipment more than 30 Taiwan (sets), the total value of more than 1000 ten thousand yuan, in the same industry in a leading level in China.
PTFE除塵濾袋
孝義興安化工有限公司熱電廠 2*150MW機組袋式除塵配套工程 AOBO-2型PPS/PTFE濾袋 投運時間2012年、2014年 Xiaoyi sing-an chemical co., LTD. Supporting engineering of bag-type dust collector of 150 mw thermal power plant 2 * AOBO time - type 2 PPS/PTFE filter bag was put into operation in 2012, 2014

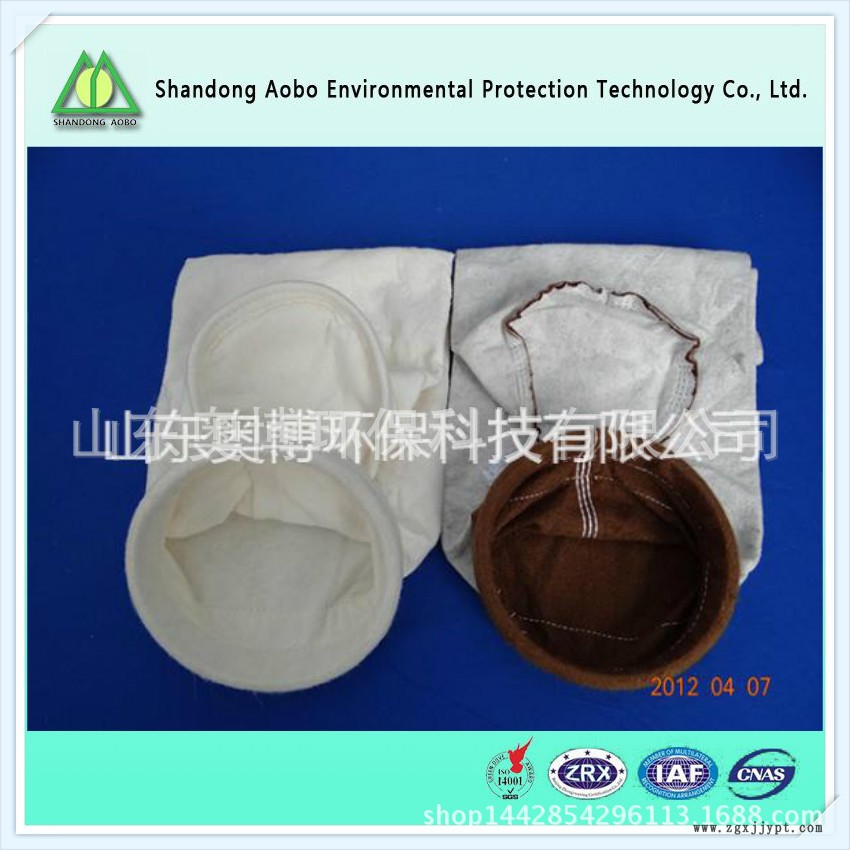

vsAOBO-除塵濾袋
兗礦集團國宏化工有限公司熱電廠 3*50MW機組袋式除塵配套工程
AOBO-2型PPS/PTFE濾袋 投運時間2014年
Yankuang group, the macro chemical co., LTD. Power plant 3 * 50 mw unit supporting engineering of bag-type dust collector
AOBO time - type 2 PPS/PTFE filter bag was put into operation in 2014
企業介紹
截至目前公司共完成國家級科技創新項目四項（“863”、火炬計劃、國家級新產品計劃、創新基金），省級創新項目七項，市級技術創新項目十余項，已授權專利15項，其中發明專利4項。截止目前公司參與編制國家、行業和地方制標準六項，現在現行的山東省大氣污染排放標注就是由我公司參與編制。標準的編制有力地提升了在行業制高點，有效地催生了市場，提升了產品的附加值。 公司現有生產和研發中心建筑面積達10萬平方米，配備先進檢測儀器設備30余臺套。并與山東省科學院新材料研究所、東華大學和東北大學國家濾料檢測中心建立了科技合作關系，成為合作單位碩士研究生工作站。公司技術中心2011年被山東省科技廳批建為“山東省袋式除塵工程技術研究中心”， 2012年被評為山東省企業技術中心。公司2013年被認定為省級高新技術企業。
依靠科技進步公司產品質量不斷提高、商業模式不斷更新市場份額逐年遞增，在垃圾焚燒、鋼鐵冶金、燃煤電廠等相關除塵領域不斷拓展，服務范圍涉及濾袋銷售、設備制造、服務外包運營、BOT項目等多種合作渠道，并成功與華能電力、華電國際、中聯水泥等大型企業合作。
So far the company has completed four state-level scientific and technological innovation projects (" 863 ", the torch plan, national new product plan, innovation fund), seven provincial innovation projects, more than 10 municipal technical innovation projects, 15 authorized patents, of which 4 invention patents. So far the company to participate in the preparation of national, industry and local standard six, now the current atmospheric pollution emissions is marked by our company in shandong province to participate in. Standard establishment vigorously promoted the commanding heights in the industry, has given rise to market effectively, improve the added value of products. Company's existing production and research and development center building area of 100000 square meters, equipped with advanced testing equipment more than 30 sets. And new materials research institute of shandong academy of sciences (liao, donghua university and the university of the northeast countries test center set up scientific and technological cooperation relationship, become partners graduate workstation. Company technology center in 2011 is shandong province department of group building for engineering technology research center of bag-type dust collector in shandong province ", was named in 2012 in shandong province enterprise technology center. The company in 2013 was identified as the provincial high-tech enterprises.
Rely on scientific and technological progress the company constantly improve the product quality and business model updating market share is increasing year by year, in waste incineration, steel, metallurgy, coal power plant dust areas related to continue to expand, services ranging from filter bag sales, equipment manufacturing, service outsourcing operations, BOT project, and other channels of cooperation, and success and huaneng power, huadian power international, China united cement and other large enterprises.
