產品別名 | 雙工位氣動翻板收卷機/纏繞機/卷取機 |
---|---|
產品用途 | 適用于管材收卷 |
電動機功率 | 8N*m(KW) |
外形尺寸 | 2600*1200*1300(mm) |
重量 | 400(kg) |
類別 | 收卷機 |
售后服務 | 整機一年保修 |
品牌 | 青島高登輪收卷機 |
型號 | Φ20—Φ32同軸側工位翻板收卷機 |
友情提示:客戶如果需增加計米報警功能,請提前說明,價格在標價基礎上加500元。
? 本機適用于將前道牽引出來的PE、PU、PP-R、鋁塑復合管、交聯復合管及片材等塑料收卷包裝,采用自動收卷,調節收卷速度和收卷張力方式。本機設有兩盤交替收卷保證生產連續性。采用氣動張開或收攏擋板,同時配備了光桿排線器,自動排線,達到排線均勻,收卷整齊,整機結構緊湊、自動化程度高、收卷整齊美觀,操作方便。
The machine is mainly used in winding-up and packing of PE、PU、PP-R、aluminium-plastic compound pipe, cross-linking compound pipe and other plastic soft pipes. It adopts automaticallywinding. Auto adjusting winding speed and winding method. It has two disk for continuous winding. It adopts air-operated method. The wheel rib of the winding up wheel adopts air-operated opening and closing. It is equipped with a ray creel stand to automatically wind displacement.It reaches winding up orderly. The machine structure is compact. It has a high degree of automation.Products winding tidy and beautiful. It’s operation is convenient.
PPR 20—32側雙工位氣動翻板收卷機
型號:側雙工位芯徑400
類別管材收卷機
產品別名:纏繞機
電動機功率力矩電機8N
外形尺寸: 2600*1200*1300
附產品參數:
項目 | 參數 | 備注 |
外形尺寸 | 2600mm(長)*1200mm(寬)*1300mm(高) | 以實物為準 |
收卷產品規格 | Φ20mm—Φ32mm管 | 適用于Φ20mm--Φ32mm的管(波紋管、平管、硅芯管等) |
收卷產品長度 | 100m—200m | |
收卷外徑 | Φ1000mm | |
收卷芯徑 | Φ400mm | |
收卷線速 | 0—150m/min | 可根據客戶產線速度進行配置 |
排線方式 | 光桿排線器 | |
電機類型及配置 | 力矩電機、配減速齒輪 | |
電機功率 | 8N*m | |
使用電壓 | 380V,50Hz | |
優缺點介紹 | 優點是纏繞效果好,性價比高,使用方便 缺點是適用規格較少,因產品管徑差異大, |

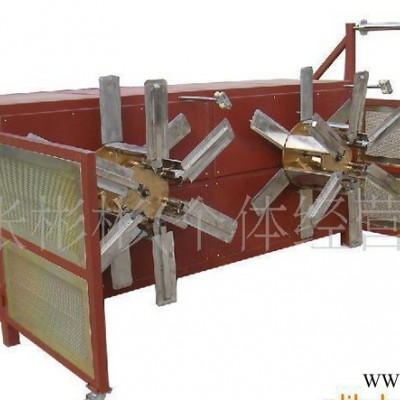

雙工位氣動翻板收卷機
適用管徑:25mm以下PE管
卷曲長度:200m
排線方式:光桿排線
卸料方便快捷 性價比高
另附戴防護罩的氣動翻板收卷機,安全防護。
以下是Φ20—Φ32氣動翻板收卷機400—500芯
還有單工位的管材收卷機
本公司常年供應、設計、定制各種型號、用于不同材質收卷的各種收卷機
//zhangbinbin1017.cn./

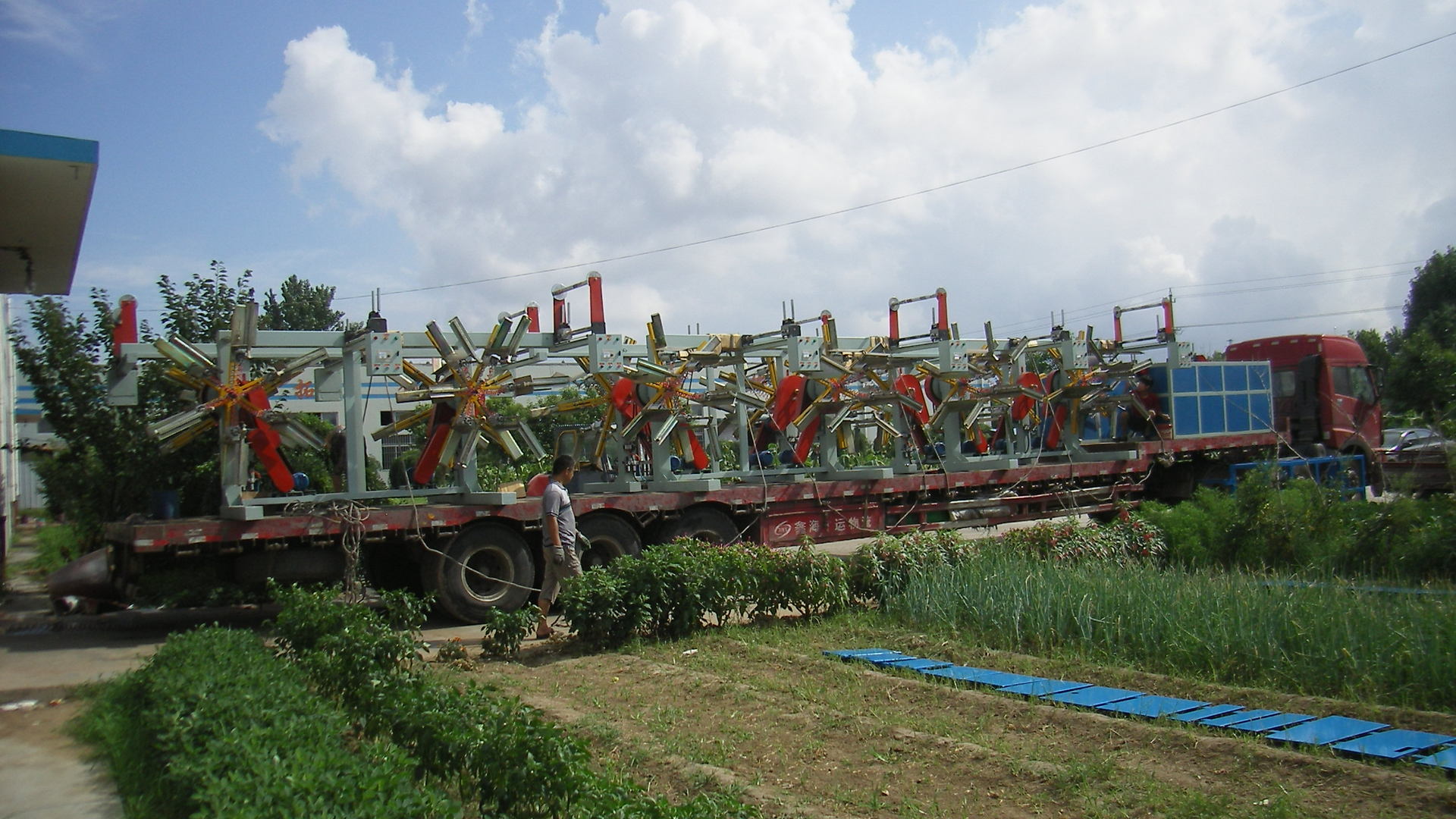

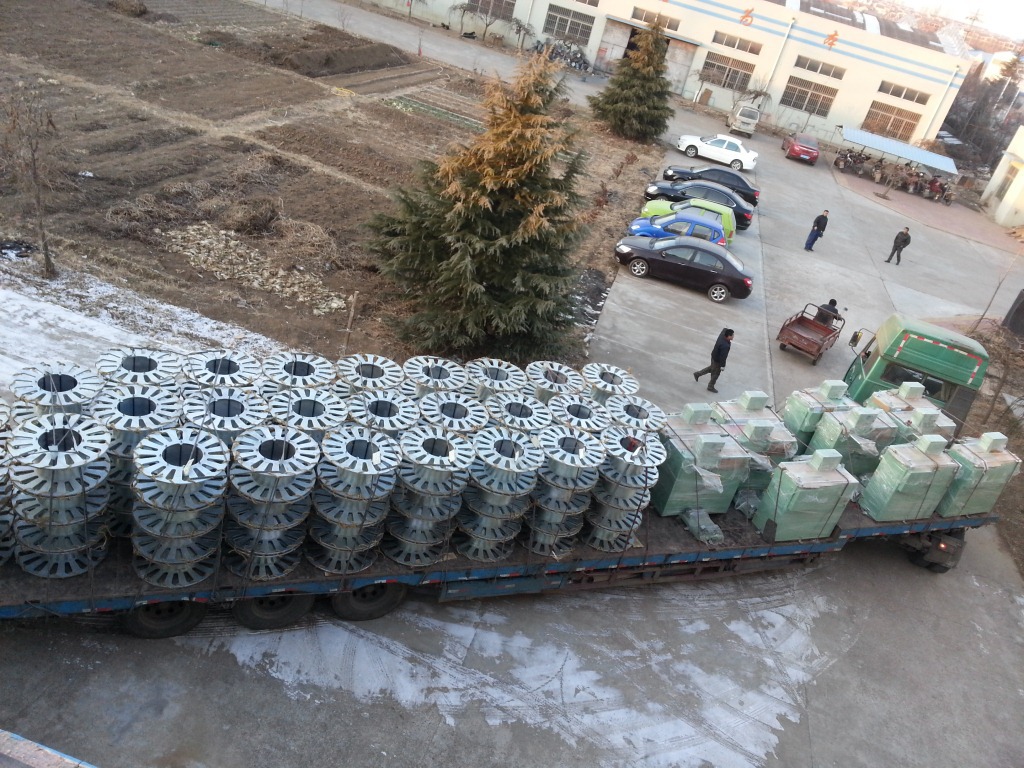

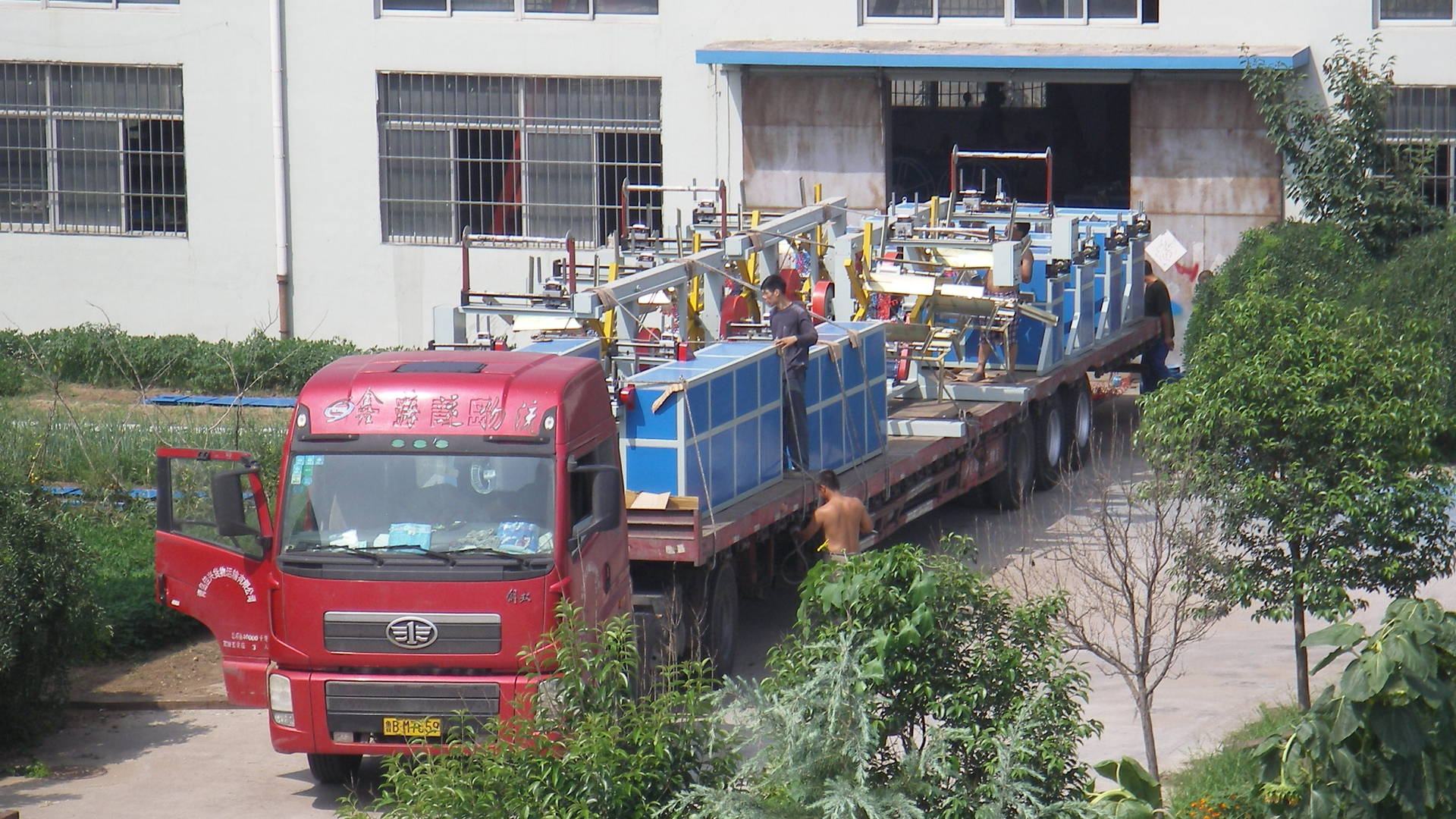

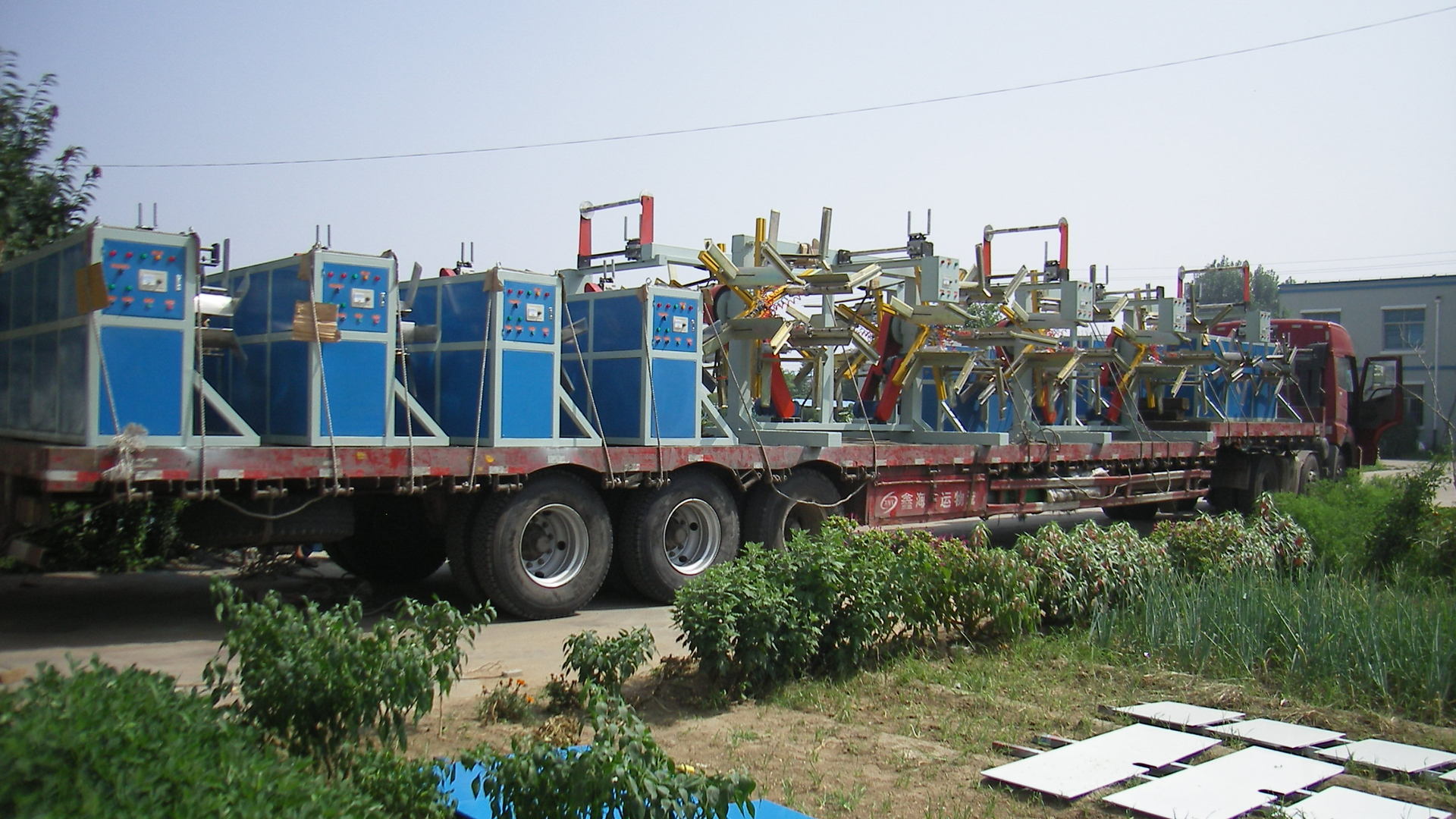

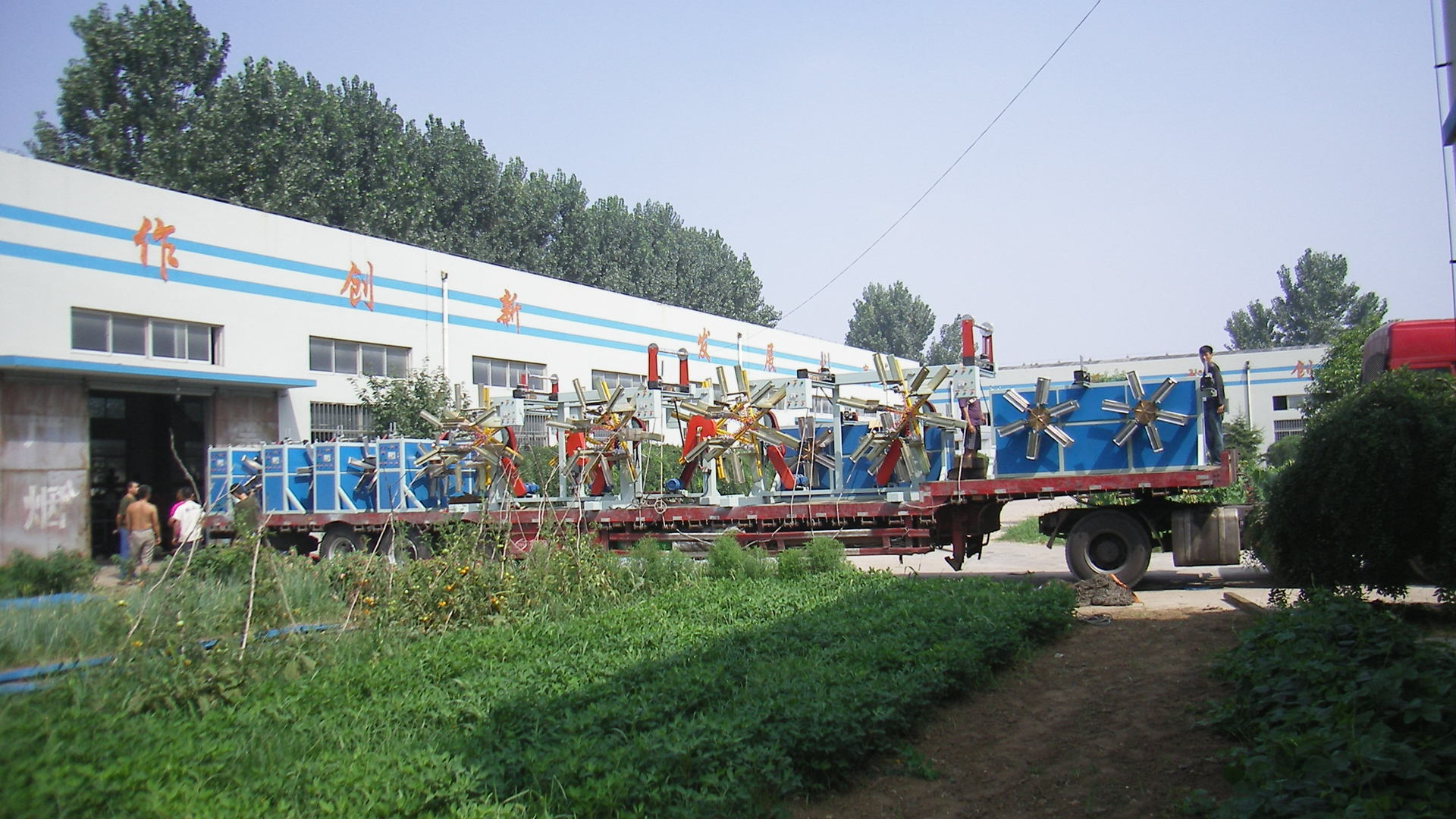

批量發貨實拍:

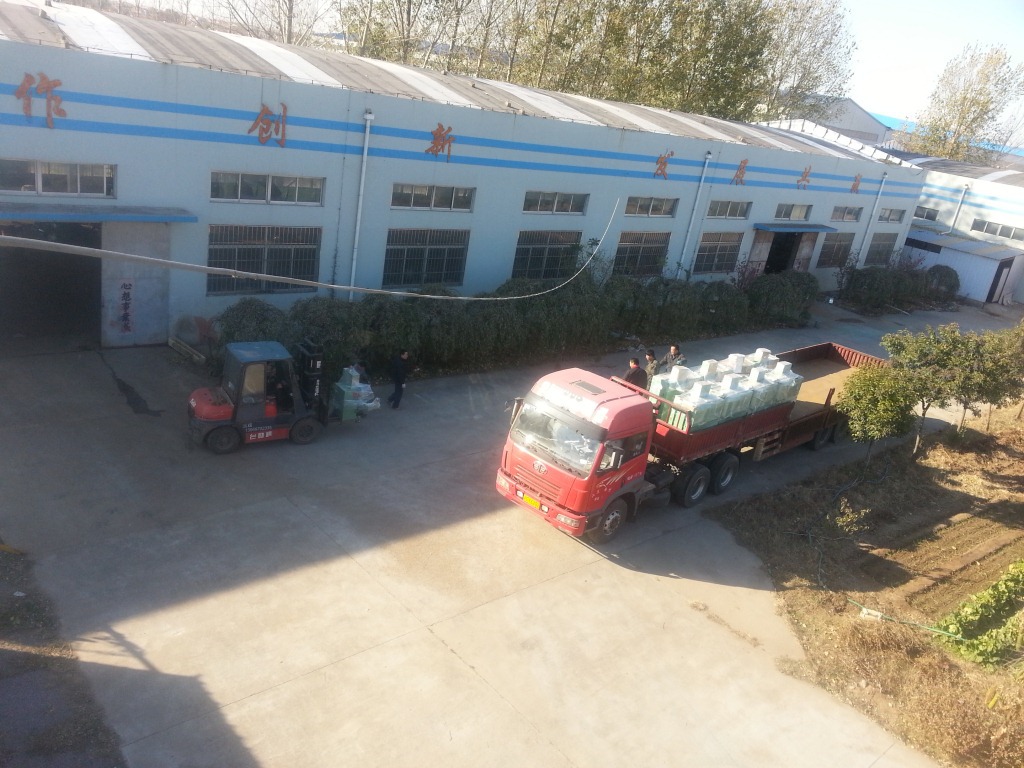

批量發貨實拍:
