| 加工定制 : | 是 | 品牌 : | 錫華 |
| 型號 : | xh-20/25 | 類型 : | 螺桿式 |
| 螺桿形式 : | 單螺桿 | 主電動機功率 : | 5.5 |
| 螺桿直徑 : | 40 | 螺桿長徑比 : | 1:40 |
| 螺桿轉速 : | 300 | 生產能力 : | 8 |
| 外形尺寸 : | 1550*500*1600 | 重量 : | 600 |
| 規格 : | 20 | 加熱方式 : | 電加熱 |
| 溫度范圍 : | 常溫~300度 | 包裝 : | 內泡棉 外木箱 |
XH-433雙螺桿實驗型造粒線
XH-433 Twin screw experimental granulation line
簡介：本機適合工程塑膠、改性塑膠、廢舊塑膠、色母粒的混煉加工實驗。具有均質、塑化著色、填充改性等功能。
Introduction: This machine is suitable for mixing and processing experiments of engineering plastics, modified plastics, waste plastics and masterbatches. It has homogeneous, plastic coloring, filling modification functions.
工作原理：本機通過加熱、混合，剪切、塑化、壓實排氣作用下，物料塑化成均勻的熔體，并在雙螺桿的擠壓下，通過機頭擠出圓形的條狀料，經冷卻水槽水冷后或者風冷后，再經切粒機切粒，得到塑膠粒料。
Working principle: Under the action of heating, mixing, shearing, plasticizing and compacting the exhaust, the material is plastified into a uniform melt, and extruded under the twin-screw and extruded through the nose into round strips. The long strips after being cooled by water in the cooling water tank or after being air-cooled, then pelletized by a pelletizer to obtain plastic pellets.
型號 Model No. | XH-433-25 | XH-433-40 |
控制系統 Control system | PLC控制 PLC control | PLC控制 PLC control |
產量 Capacity | 約1-10kg/h根據工藝配方 1-10kg/h(decide by formula ) | 約60/h根據工藝配方 60/h(decide by formula ) |
螺桿直徑 Screw diameter | 21.7mm或指定 21.7mm or customized | 40mm或指定 40mm or customized |
長徑比 L/D | 1：40 | 1：48 |
螺桿轉速rpm Screw speed | 0-300 | 50-500 |
冷卻裝置 Cooling device | 風冷/水冷（可選配） Air/water cooling (optional) | 風冷/水冷（可選配） Air/water cooling (optional) |
風機 Fan | 1/4HP | 3HP |
切粒機(原有切粒裝置) Cutting device | 切粒機Granulator | 切粒機Granulator |
電源 Power Supply | 3∮，AC380 | 3∮，AC380 |

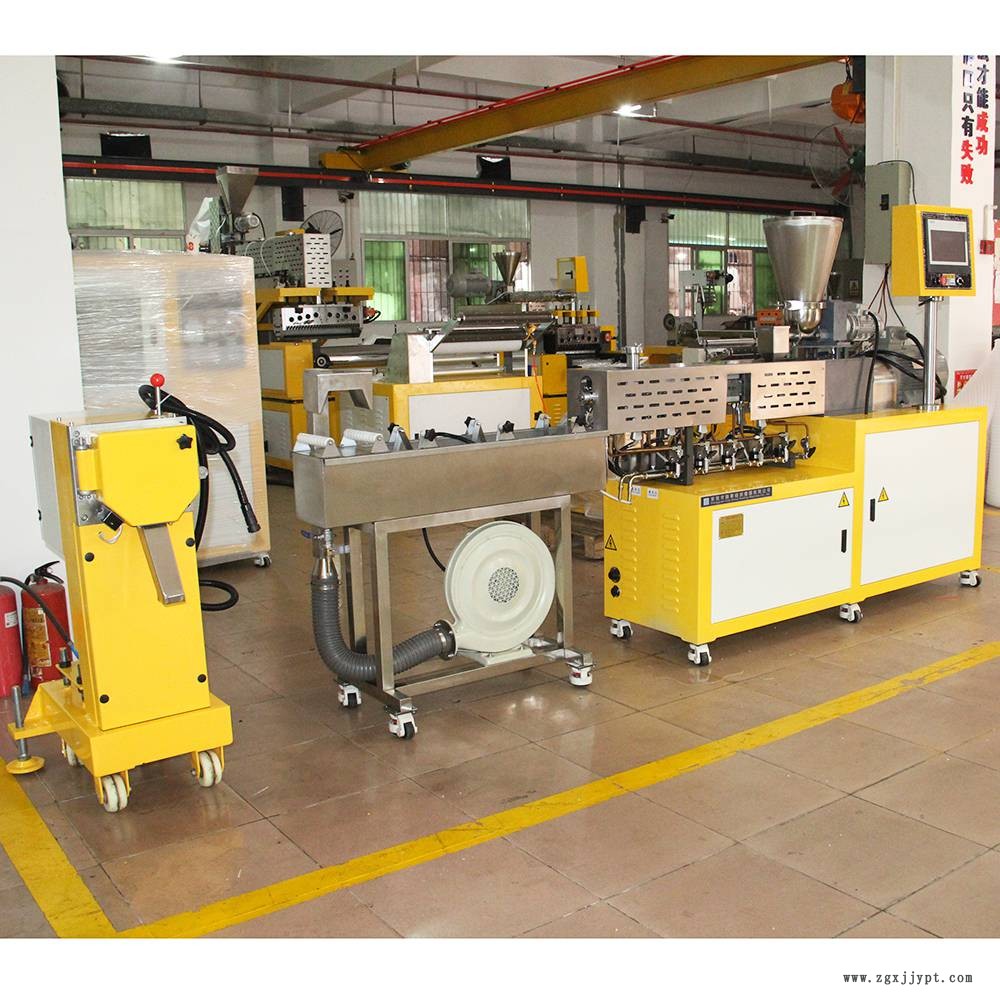

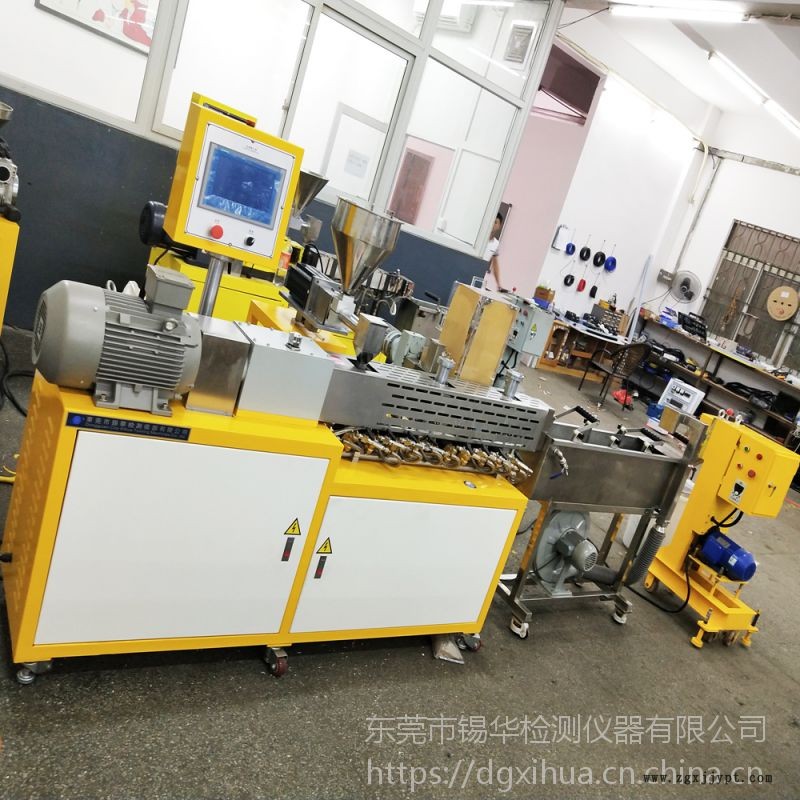

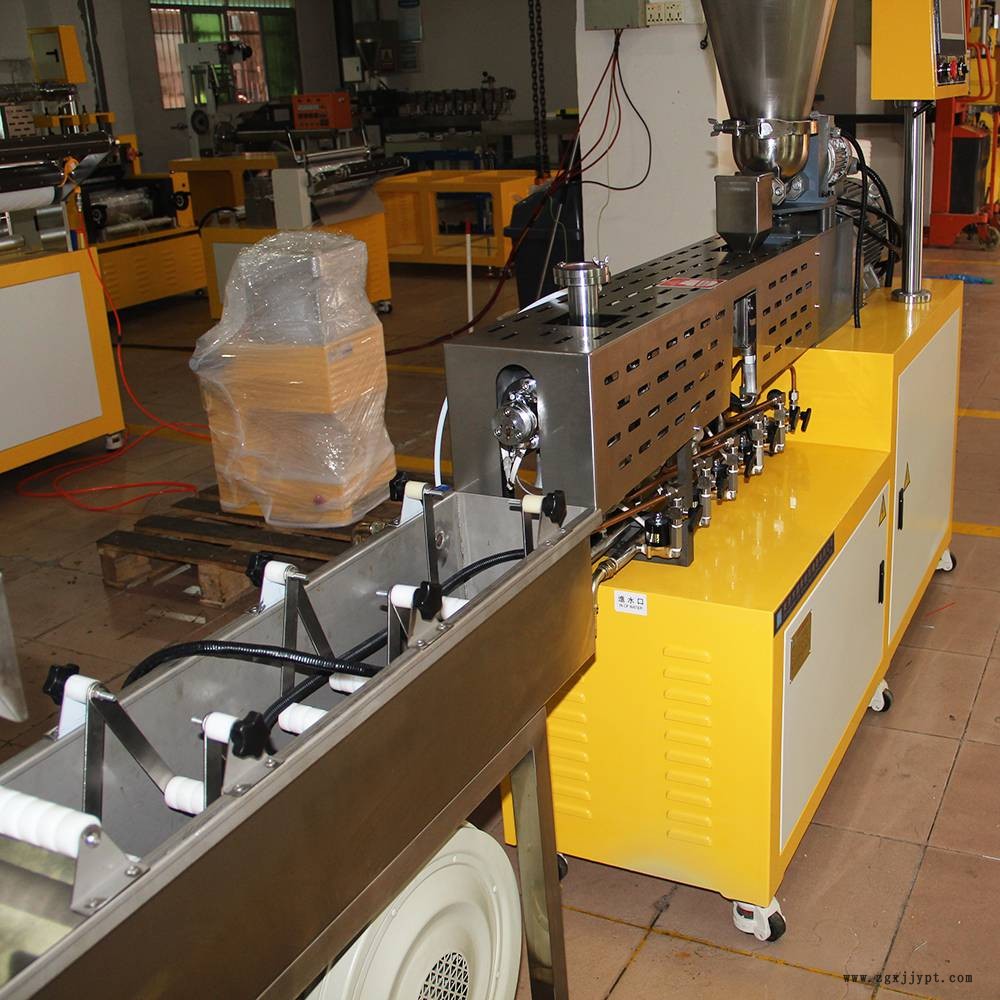

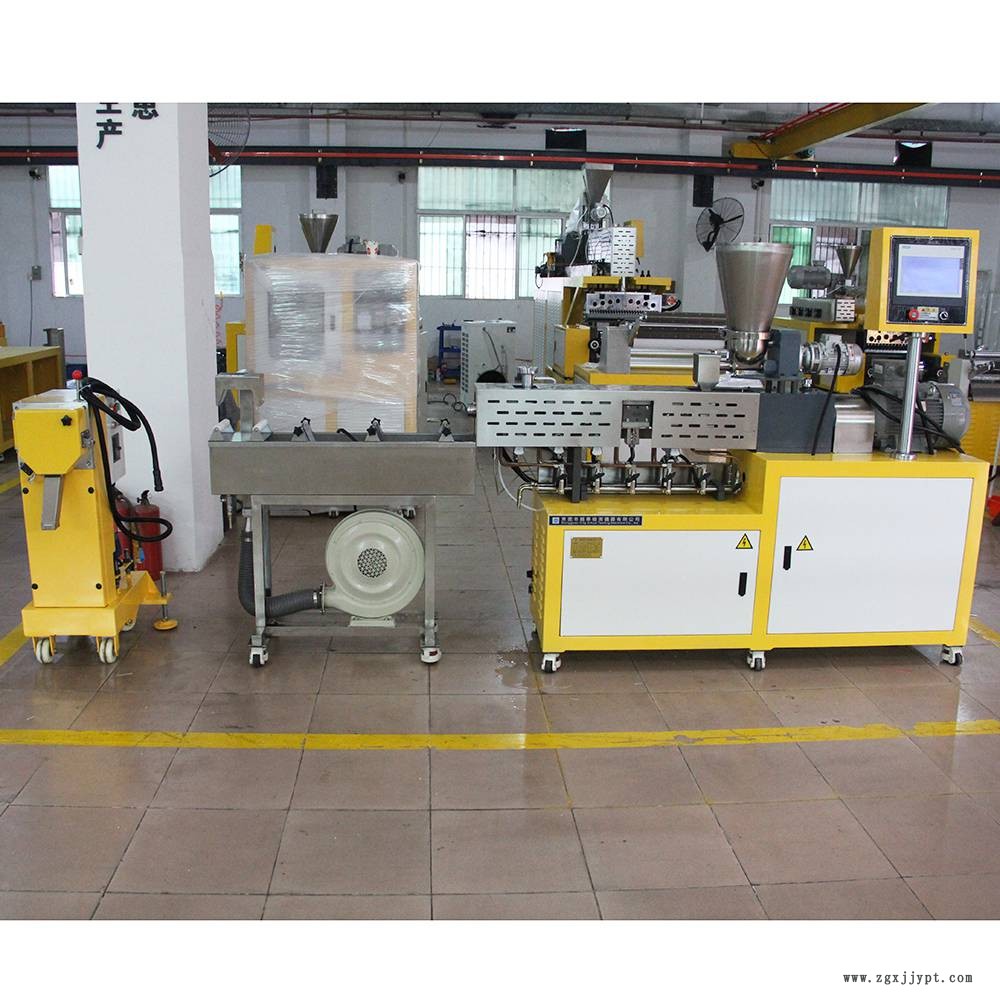

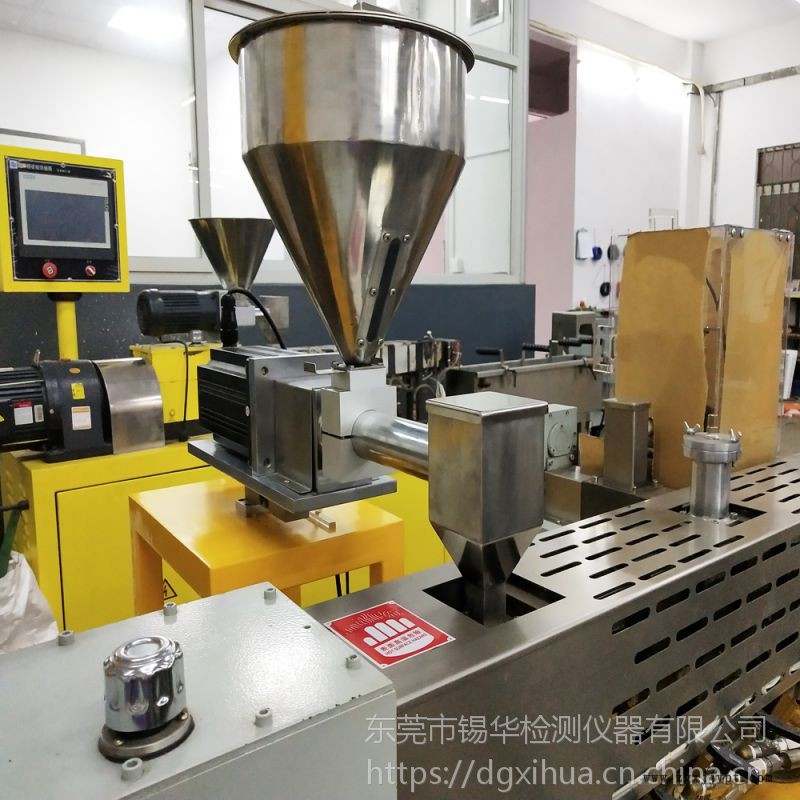

生產車間實拍大圖：
